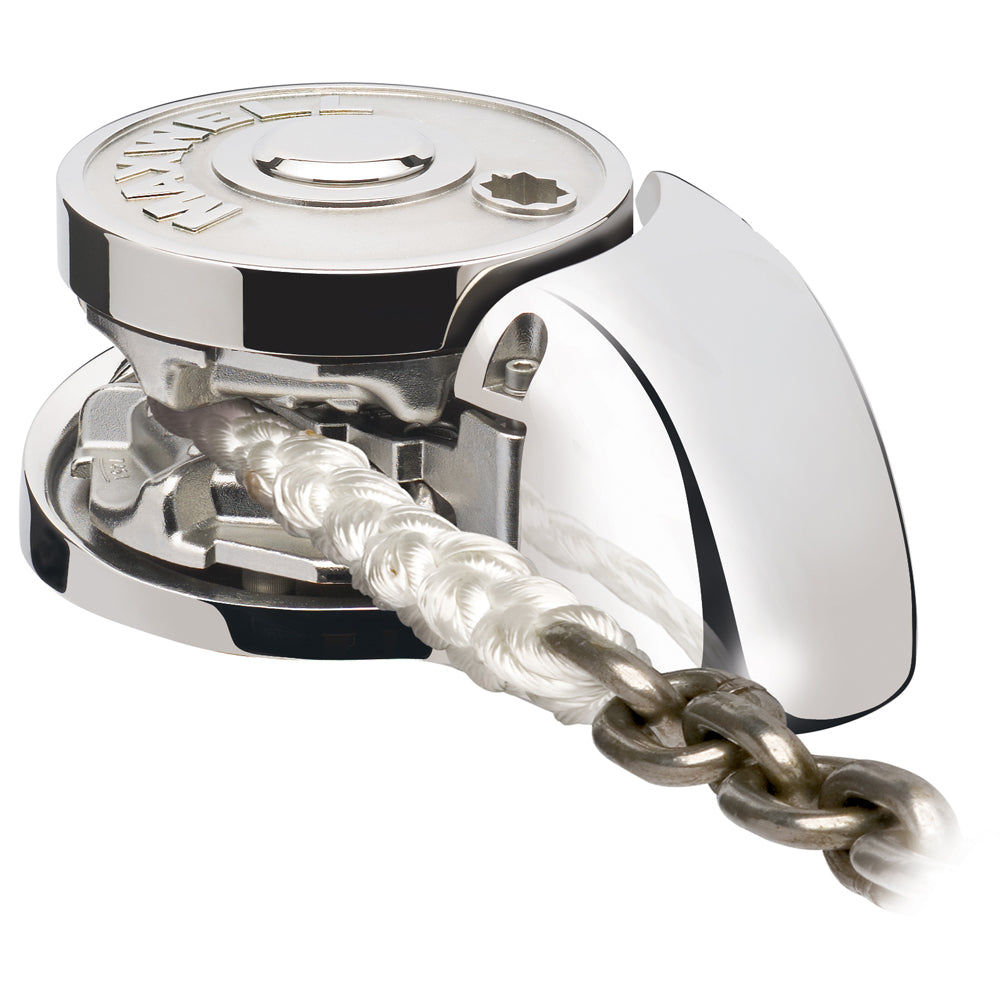

Maxwell RC12/10 12V Windlass - f/3/8" Chain & 3/4" Rope

Maxwell RC12/10 12V Windlass - f/3/8" Chain & 3/4" Rope

SKU RC121012V
by Maxwell
Sold out
$5,183.00
$4,146.40

Experience effortless anchor retrieval with the RC12/10 12V Windlass, a powerhouse in its class. This versatile windlass is designed to handle 10mm (3/8") short link chain and 16mm (5/8") to 20mm (3/4") three-strand or 8-Plait rope, or 12mm/13mm (1/2") short link chain and 20mm (3/4") three-strand or 8-Plait rope, with a maximum pull of 1590 kg (3500 lb) and a speedy anchor retrieval rate of 15m/min (50ft/min).

  • Innovative Features: Packed with cutting-edge technology, including Maxwell's revolutionary Wave Design™ chainwheel and the unique Active Latch Ratchet System for easy manual retrieval.
  • Sleek Aesthetics: Available in a sleek, Low Profile version or with a fluted stainless steel capstan drum, the RC12 series reflects the modern form-follows-function design of Maxwell's renowned windlass lineup.
  • Durable Construction: Crafted with polished marine-grade 316 stainless steel components, including the deckplate, chainpipe cover, pressure arm, stripper, chainwheel, and fluted capstan drum, ensuring long-lasting performance.
  • Smooth and Precise Control: The double cone-type brake/clutch mechanism provides smooth, progressive engagement, allowing for safe and precise operator control during anchoring.

Notify me when back in stock

  • Secure Checkout
  • Chat Support
  • Free Shipping
  • Financing Available
  • Description
  • Shipping & Returns
  • RC12/10 12V Windlass

    The RC12 fully automatic windlass series is designed to effortlessly retrieve and deploy 10mm (3/8") short link chain and 16mm (5/8") to 20mm (3/4") three strand or 8-Plait rope (RC12-10) and 12mm/13mm (1/2") short link chain and 20mm (3/4") three strand or 8-Plait rope (RC12-12).

    With a maximum pull of 1590 kg (3500 lb), and an anchor retrieval rate of 15m/min (50ft/min), the RC12-12 is one of the fastest and gruntiest windlasses in its class.

    A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.

    The RC12 is packed with innovative features combined with Maxwell's traditionally classic aesthetics, but reflecting the modern form follows function of the highly successful RC6, RC8 and RC10 series windlasses.

    The elegantly designed deckplate and chainpipe cover are manufactured in polished marine-grade 316 stainless steel, as are the heavy duty pressure arm, stripper, chainwheel and fluted capstan drum.

    The huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

    Double cone-type brake/clutch mechanism permits Free Fall anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement, ensuring safe and precise operator control.

    The RC12 features Maxwell's revolutionary and Wave Design™ chainwheel.
    Emergency manual retrieval is made simple and easy with Maxwell's unique Active Latch Ratchet System operation that prevents backwind of the windlass during manual hauling of the anchor.

    The Maxwell-designed and innovative black, hard anodized gearbox provides numerous advantages: - Fast and easy windlass installation - More corrosion resistant - Easy to maintain and service - Takes up less room in the anchor locker - 75:1 Ratio (RC12-10) or 100:1 Ratio (RC12-12), single stage design with less moving parts, for smoother and quieter operation - Allows for multi-positioning of the gearbox/motor.

    Every Maxwell automatic rope/chain windlass comes complete with all the necessary components for fully automatic dual direction control in a competitively priced package.
