Wichard HR Bow Shackle - 20mm Diameter - 25/32"

Wichard HR Bow Shackle - 20mm Diameter - 25/32"

SKU 11248
by Wichard Marine
Save $91.58
$711.40
$619.82

This product is currently not available for sale.

  • Description
  • Shipping & Returns

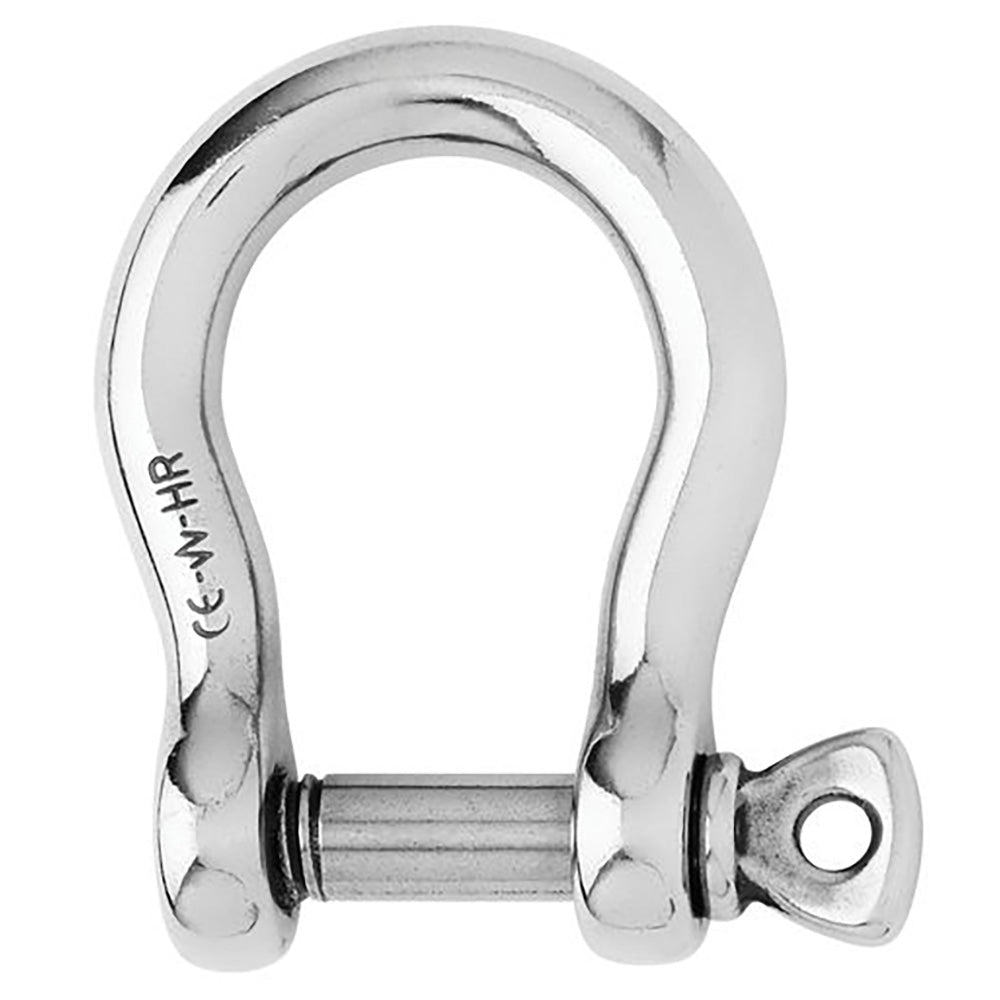

  • HR Bow Shackle - 20mm Diameter - 25/32"

    Features:

    • Forged bow shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Applications requesting high loads
    • To be used when ample room is required
    • Possibility to attach several lines or cables
    • Do not use it for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 19400 / (kg) 8800
    • WLL: (lb) 12340 / (kg) 5600
    • Breaking load: (lb) 61720 / (kg) 28000
    • Weight: (lb) 2.229 / (kg) 1.011

    Dimensions:

    • A: (inch) 3 5/32" / (mm) 80
    • B: (inch) 1 37/64" / (mm) 40
    • C: (inch) 25/32" / (mm) 20
    • D: (inch) 1 37/64" / (mm) 40
    • D diameter: (inch) 25/32" / (mm) 20
    • E: (inch) 45/64" / (mm) 18
    • M: (inch) 3 15/16" / (mm) 100

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual
