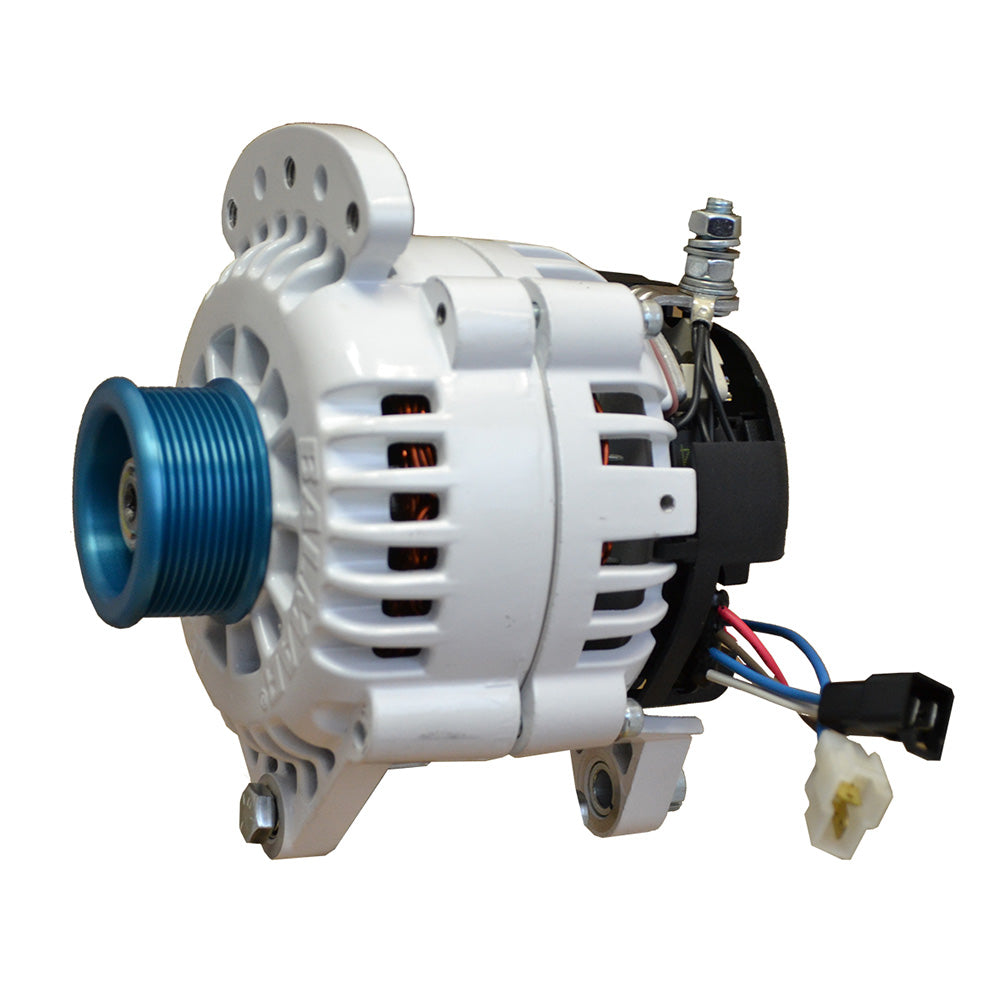

Balmar Alternator 120 AMP 12V 3.15" Dual Foot Saddle J10 Pulley Isolated Ground

Balmar Alternator 120 AMP 12V 3.15" Dual Foot Saddle J10 Pulley Isolated Ground

SKU 60-120-J10
by Balmar
Save $91.00
$857.00
$766.00

Stay powered up with this robust and reliable Balmar 120 AMP 12V alternator. Featuring a dual-foot saddle design and an isolated ground, this alternator is the perfect choice for moderate recreational marine charging demands.

  • High-Output Performance: Delivers 120 amps of charging power to keep your batteries charged.
  • Versatile Mounting: Designed with a dual-foot saddle and a 3.15-inch J10 pulley, this alternator offers flexible installation options for a variety of engine configurations.
  • Compatibility: This alternator is a direct replacement for the 60-120-SR-IG model, making it a seamless upgrade for many Yanmar, Westerbeke, Lehman, and Perkins-Sabre engines.

Notify me when back in stock

  • Secure Checkout
  • Chat Support
  • Free Shipping
  • Financing Available
  • Description
  • Shipping & Returns

  • Alternator 120 AMP 12V 3.15" Dual Foot Saddle J10 Pulley Isolated Ground

    Alternator, 60 Series, 120A, 12V, Saddle Mount (Dual Foot), 3.15in, J10 AltMount Serpentine Pulley, Isolated Ground Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines

    Replaces: 60-120-SR-IG

    Product Data Sheet: Balmar 6-Series Alternators (PDF)

    Specifications

    Electrical Specifications

    • Alternator Style: Small Case, Positive Field Excitation (P-Type)
    • Regulation: External P-Type (ARS-5 or MC-614), or Internal Smart Ready® Fixed Voltage Regulator
    • Internal Voltage Regulation: 14.1 Volts (12V systems), 28.2 Volts (24V Systems)
    • Positive Output: Threaded Stud Dimensions: M8 x 1.25”
    • Lamp Output: D+ (low voltage / low current) Stud Dimensions: 10 x 24
    • AC/Stator Output: 12 Pulse. Stator Output Wire included in Pigtail Plug
    • Diodes +/-: 3 Positive, 3 Negative; 50A Rated
    • Low RPM Cut-In: 1,320 rpm
    • Max Alternator RPM: 15,000 rpm

    Cooling and Temperature Management

    • Cooling: Dual Internal Fans
    • Normal Operating Temperature: 180°F / 82°C
    • Max Operating Temperature: 225°F / 108°C

    Mounting Specifications

    • Mounting Style: 60 Series: 3.15” Dual Foot (Saddle)
    • Mounting Foot Bore: 60 & 604-Series: 8mm or 10mm
    • Tensioning Arm Mount: Five Position Crown (M8 x 1.25”)

    Construction and Durability

    • Bearings: Sealed Bearings, Heavy Duty Radial (front & rear)
    • Grounding: Dedicated Terminal (Case Isolated) Stud Dimensions: M8 x 1.25”
    • Case Construction: Ventilated Cast Aluminum High Impact Plastic Rear Cover
    • Finish: White Power Coat

    Safety and Compliance

    • Ignition Protection Ratings: USCG Title 33, ISO J1187, CE, SAE 8846
